| Camera |
| Image Sensor2 MP CMOS image sensor |
| Max. Resolution1920 (H) × 1080 (V) |
| Min. Illumination0.02 Lux@(F1.2, AGC ON), 0 Lux with IR |
| Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s |
| Day & NightIR Cut Filter |
|
Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 180°, Rotation: 0° to 360° |
| Lens |
| Lens TypeFixed focal lens, 2.8 mm and 3.6 mm optional |
| Focal Length & FOV |
|
2.8 mm, horizontal FOV: 96.5°, vertical FOV: 48.9°, diagonal FOV: 120.5° |
|
3.6 mm, horizontal FOV: 76.9°, vertical FOV: 40.6°, diagonal FOV: 92.0° |
| Lens MountM12 |
| Illuminator |
| Supplement Light TypeIR |
| Supplement Light RangeUp to 20 m |
| Image |
| Image Parameters SwitchSTD/HIGH-SAT |
| Image SettingsAGC;Brightness;Smart IR;Mirror;Sharpness |
| Frame Rate |
| PAL: 1080p @ 25 fps |
| NTSC: 1080p @ 30 fps |
| Day/Night ModeAuto/Color/BW (Black and White) |
| Wide Dynamic Range (WDR)Digital WDR |
| Image EnhancementDWDR;BLC |
| Noise Reduction2D DNR |
| Interface |
| Video OutputSwitchable TVI/AHD/CVI/CVBS |
| General |
| Power12 VDC ±15%, Max. 4 W |
| MaterialPlastic |
| Dimension165 mm × 62 mm × 58 mm (6.50" × 2.44" × 2.28") |
| 400 g (0.88 lb.) |
|
Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensation) |
| Approval |
| ProtectionIP66 |

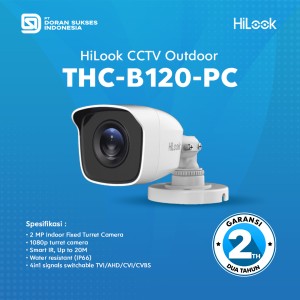

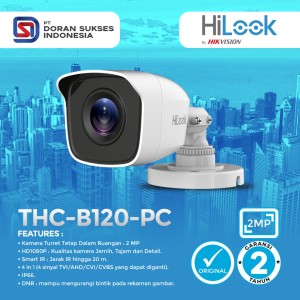

| *THC-B120-PC / OUTDOOR EXIR BULLET CAMERA)* |
| KEUNGGULAN dan FITUR : |
| - Dijamin Original , tidak Ori uang kembali |
| -Harga Sangat terjangkau di kelas 2MP HiLook. |
| -Resolusi kamera 2MP FULL HD (1920 × 1080p) |
| -SMART IR,Otomatis ON/OFF Infrared sesuai dengan kondisi lingkungan sekitar. |
| -DNR,Untuk mengkoreksi Noise objek. |
| -Menggunakan teknologi DWDR sehingga mampu mengatur kecerahan & mengatasi objek gelap akibat silau. |
| -Tombol Switch,untuk merubah output video TVI/AHD/CVI/CVBS sehingga kamera ini bisa digunakan di hampir semua DVR. |
| -Bergaransi Resmi HiLook 2 Tahun. |
