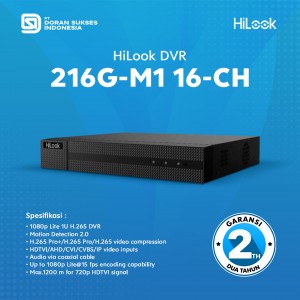

Hilook DVR-216G-M1

16-ch 1080p Lite 1U H.265 DVR

  • Deep learning based human and vehicle targets classification of Motion Detection 2.0
  • H.265 Pro+/H.265 Pro/H.265 video compssion
  • HDTVI/AHD/CVI/CVBS/IP video inputs
  • Audio via coaxial cable
  • Up to 18-ch IP camera input (up to 5 MP)
  • Up to 1080p Lite@15 fps encoding capability
  • Max. 1200 m for 720p HDTVI signal
  •

  •

  •

  •

  •

  • Motion Detection 2.0
  • Human/Vehicle Analysis

    Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;

    Quick search by object or event type is supported;

  • Recording
  • Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
  • Encoding Resolution

    For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF

    For 720p stream access: 720p/WD1/4CIF/VGA/CIF

    For SD stream access: WD1/4CIF/VGA/CIF

  • Frame Rate

    Main stream:

    For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@15 fps

    For 720p stream access: 720p/WD1/4CIF/VGA/CIF@15 fps

    For SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)

    Sub-stream:

    For 1080p and 720p stream access CIF/QVGA@15 fps

    For SD stream access: CIF/QVGA@25 fps (P)/30 fps (N)

  • Video Bitrate32 Kbps to 4 Mbps
  • Dual-StreamSupport
  • Stream TypeVideo, Video & Audio
  • Audio CompressionG.711u
  • Audio Bitrate64 Kbps
  • Video And Audio
  • IP Video Input

    2-ch (up to 18-ch)

    Up to 5 MP resolution

    Support H.265+/H.265/H.264+/H.264 IP cameras

  • Analog Video Input

    16-ch

    BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

  • HDTVI Input1080p25, 1080p30, 720p25, 720p30
  • AHD Input1080p25, 1080p30, 720p25, 720p30
  • HDCVI Input1080p25, 1080p30, 720p25, 720p30
  • CVBS InputPAL/NTSC
  • HDMI Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
  • VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
  • Video Output ModeHDMI/VGA simultaneous output
  • Audio Input1-ch RCA (2.0 Vp-p, 1 KΩ), and 16-ch via coaxial cable
  • Audio Output1-ch, RCA (Linear, 1 KΩ)
  • Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
  • Synchronous Playback16-ch
  • Network
  • Total Bandwidth96 Mbps
  • Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP,UPnP™, HTTPS, ONVIF
  • Remote Connection128
  • Network Interface1, RJ45 10/100 Mbps self-adaptive Ethernet interface
  • Auxiliary Interface
  • SATA1, SATA interface
  • CapacityUp to 10 TB capacity for each disk
  • USB Interface2 × USB 2.0
  • General
  • Power Supply12 VDC, 1.6 A
  • Consumption≤ 10 W (without HDD)
  • Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
  • Working Humidity10% to 90%
  • Dimension (W × D × H)260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inch)
  • Weight≤ 1.1 kg (without HDD, 2.4 lb.)
